MD43Pro Long Range Drone Mesh Radio | AES256 Wireless Network

Name: MD43Pro Long Range Drone Mesh Radio | AES256 Wireless Network
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MD43Pro
Price: 5,500.00 USD
Availability: InStock

Thông tin chi tiết sản phẩm

Nguồn gốc: Thâm Quyến, Trung Quốc

Hàng hiệu: Suntor

Chứng nhận: FCC, CE, RoHS

Số mô hình: MD43Pro

Điều khoản thanh toán & vận chuyển

Nhận giá tốt nhất

Liên hệ ngay

Thông số kỹ thuật

Mô tả

Thông số kỹ thuật

Làm nổi bật:
                                                                                                                                                                                                                                                                                                                                                                                                      MD43Pro long range drone radio, AES256 wireless mesh network, IP mesh network drone radio


Công nghệ truyền dẫn:	COFDM	Khoảng cách truyền:	Lên đến 150KM không đối đất
Dải tần số:	1300–1500 MHz (Tùy chỉnh)	Băng thông:	5/10/20MHz
Kích thước:	156 × 142 × 64mm	Cân nặng:	≤1.4kg

Công nghệ truyền dẫn:	COFDM
Khoảng cách truyền:	Lên đến 150KM không đối đất
Dải tần số:	1300–1500 MHz (Tùy chỉnh)
Băng thông:	5/10/20MHz
Kích thước:	156 × 142 × 64mm
Cân nặng:	≤1.4kg

Mô tả

MD43Pro Long Range Drone Mesh Radio | AES256 Wireless Network

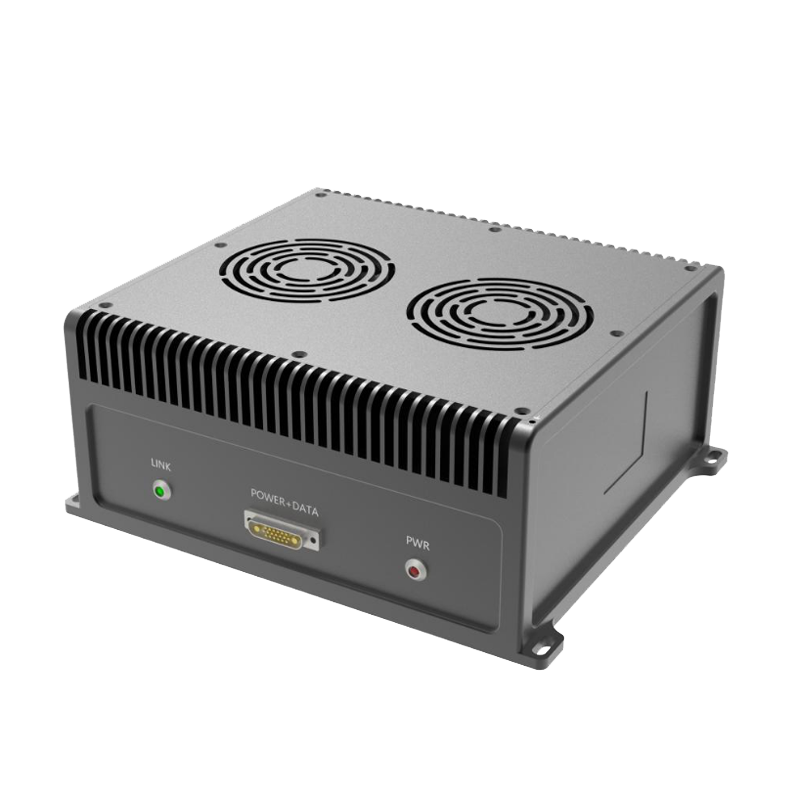

The MD43Pro Drone Mesh Radio is a high-power 20W UAV IP Mesh communication system engineered for long-range, beyond-line-of-sight wireless networking. Supporting up to 150KM air-to-ground transmission, 52Mbps data throughput, 64+ mesh nodes, IFS/FHSS frequency hopping, and AES128/256 encryption, it delivers secure, reliable, low-latency video, voice, and IP data transmission. Ideal for UAV surveillance, emergency response, public safety, border security, tactical communication, and industrial inspection, the MD43Pro provides stable self-healing wireless networking in complex and dynamic environments.

Key Features

150KM Long Range Transmission - Supports up to 150KM air-to-ground communication, providing reliable broadband connectivity for long-distance UAV missions.
20W High Power Output - Dual-channel 10W ×2 RF transmission ensures stronger penetration capability and stable communication in complex environments.
64+ Self-Healing Mesh Nodes - Supports more than 64 IP Mesh nodes, automatically forming an intelligent Ad Hoc network without centralized infrastructure.
52Mbps Broadband Data Rate - Delivers up to 52Mbps throughput, enabling simultaneous HD video, telemetry, voice, and IP data transmission.
AES128/256 Secure Encryption - Defense-grade AES encryption protects mission-critical communication against unauthorized interception.
IFS/FHSS Frequency Hopping - Advanced intelligent frequency hopping effectively resists interference and ensures reliable communication under challenging RF environments.

Technical Specifications

Parameter	Specification
Frequency Range	1300-1500 MHz (Customizable)
Bandwidth	5MHz / 10MHz / 20MHz
Transmission Technology	COFDM
Modulation Mode	BPSK / QPSK / 16QAM / 64QAM (Adaptive)
Peak Data Rate	52 Mbps @ 20MHz
RF Output Power	2W × 2 (4W Total)
Receive Sensitivity	≤ -100 dBm @ 5MHz
Transmission Distance	Up to 50 km Air-to-Ground
Networking Capability	More Than 64 Mesh Nodes
Networking Hops	More Than 10 Hops
Network Topology	Ad-Hoc / Mesh / Star / Chain Network
Encryption	AES128 / AES256
Frequency Hopping	FHSS Supported
Ethernet Interface	J30J Connector
Serial Interface	J30J Connector
Power Interface	J30J Connector
Power Supply	DC 12V - 26V
Power Consumption	≤30W Typical / ≤45W Peak
Protection Rating	IP65
Operating Temperature	-40°C to +65°C
Dimensions	≤128 × 88 × 42 mm
Weight	≤450 g

Applications

UAV Surveillance
Emergency Rescue
Public Safety
Border Security
Disaster Relief
Industrial Inspection

Why Choose MD43Pro

High RF Output

20W transmission power provides superior communication range.

Long Communication Distance

Up to 150KM air-to-ground transmission.

Broadband Wireless Network

Supports HD video, IP data, telemetry and voice simultaneously.

Self-Healing Mesh Network

Automatic routing without centralized infrastructure.

Defense-Level Security

AES128/AES256 encryption safeguards every transmission.

Rapid Deployment

Automatic network establishment in only 5 seconds, ideal for emergency response.

Frequently Asked Questions

What is the maximum transmission distance of MD43Pro?

The MD43Pro supports up to 150KM air-to-ground transmission under line-of-sight conditions.

How many Mesh nodes can the system support?

The system supports more than 64 IP Mesh nodes, enabling large-scale wireless networking.

What data can be transmitted?

The radio supports simultaneous transmission of HD video, IP data, telemetry, voice, and command signals.

Does the radio support encrypted communication?

Yes. It supports AES128 and AES256 encryption to ensure secure wireless communication.

What networking modes are supported?

MD43Pro supports Mesh, Star, and Chain network topologies, with self-healing routing and over 10 networking hops.

Does the radio support anti-jamming technology?

Yes. It integrates IFS intelligent frequency selection and FHSS frequency hopping, improving communication stability in complex RF environments.
